With so many types in the ASME B16.5 standard, choosing the right connection can be tricky. One wrong decision can lead to leaks, failures, or costly shutdowns.

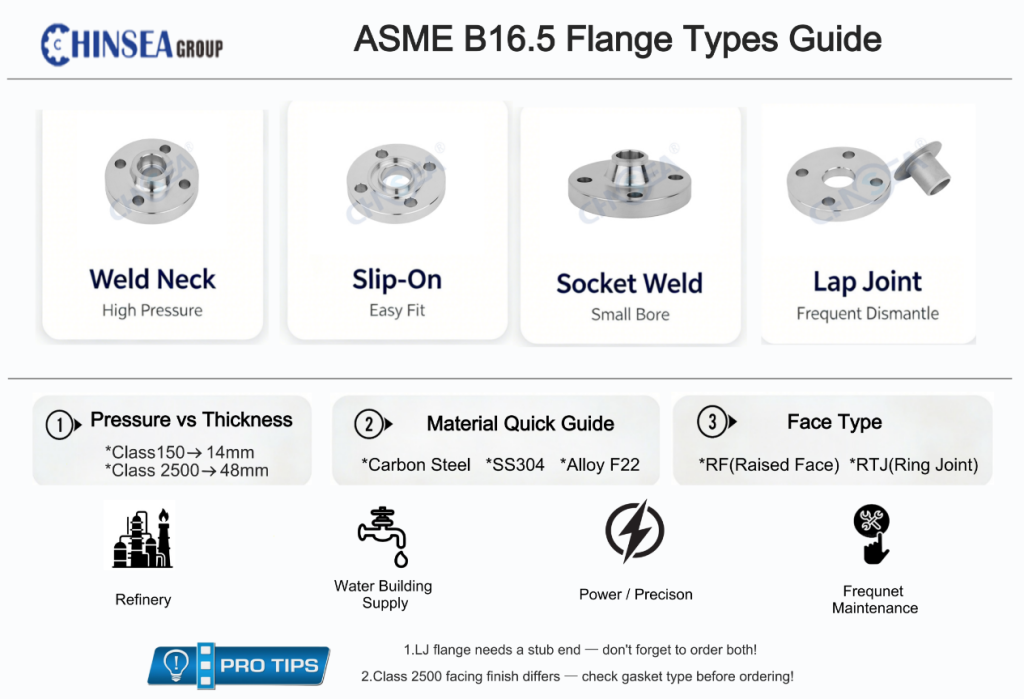

We’ve simplified the complexity into a clear visual guide. Whether you need high-pressure resistance (Weld Neck), easy assembly (Slip-On), or frequent dismantling (Lap Joint), this quick reference covers the key features.
✅ Inside the Guide:
• Quick comparison of 4 common flange types
• Critical factors: Pressure vs. Thickness
• Material selection tips (Carbon Steel, SS304, Alloy F22)
Save this post for your next engineering review! 🔖
